Liftgate

MAXON CONTROL HARNESS 46"
• 2 Wire 16 Gauge w/Deutsch Plug

MAXON CONTROL HARNESS 70"
• 2 Wire 16 Gauge w/Deutsch Plug

THIEMAN INTERMITTENT SOLENOID
• 12V, 4-Terminal
• 150A Continous
• 800A Surge
• 180° Curved Bracket

HYDRA FORCE SOLENOID VALVE COIL w/DIODE
• 12V - 2 Pin Metri-Pack Plug
• 1/2" Valve Hole Diameter

MAXON MAIN FRAME GREASE PIN ASSEMBLY
• 1.25" OD X 3.375" OAL

LIFT GATE SWITCH W/LED INDICATORS
• Momentary Up/Momentary Down

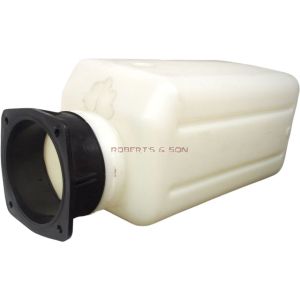

BUCHER POLY RESERVOIR
• Overall Length with Collar 4.00"
• Tank Length 3.00"
• Tank Width 3.25"
• Tank Height 5.38"
• Collar Length 1.00"
• 0.55 Quarts Useable

KTI HYDRAULICS POLY RESERVOIR
• Overall Length with Collar 8.00"
• Tank Length 6.50"
• Tank Width 6.88"
• Tank Height 6.88"
• Collar Length 1.25"

THIEMAN STEEL RESERVOIR
• Overall Tank Length with Collar 10.00"
• Tank Length 9.00"
• Tank Diameter 6.00"
• Dual Hole
• Horizontal Mount
• 1 Gallon Useable

PALFINGER HYDRAULIC LIFT CYLINDER
• 22" OAL w/28mm ID Mnt Bushings

PALFINGER HYDRAULIC LIFT CYLINDER
• 14.5" OAL w/22mm & 25MM Mnt Holes

PALFINGER CONTROL BOX ASSEMBLY
• 6-Wire Harness w/Plug

PALFINGER NYLON CENTER BUMPER WHEEL
• 100mm Diam. x 30mm Wide

PALFINGER RESERVOIR BREATHER CAP

MAXON HEX SOCKET DRAIN PLUG
• SAE O-Ring 3/4"-16

MAXON OFF-TIME DELAY MODULE
• 3-Wire & Stud Terminal

TOMMY LIFT GATE POLY RESERVOIR
• Tank Length 10.00"
• Tank Diameter 4.50"
• Single Hole
• Horizontal Mount
• 1.25 Quarts Useable

PALFINGER LOCKING PLATFORM LATCH
• Stainless Steel w/Locknut

PALFINGER CURB SIDE TORSION SPRING-BLACK
• Standard Duty 10.00" X 5/8" Diam.

PALFINGER FLANGE LOCK BOLT
• 12mm X 16mm

PALFINGER UPPER/LOWER BODY PIN
• 25mm X 65mm w/6mm Slots

PALFINGER PLATFORM LIFT ARM BUSHING
• 28mm ID x 32mm OD x 31mm Long

PALFINGER EXTERNAL SNAP RING
• 23mm ID X 2mm Thk

PALFINGER LOCK PIN BOLT
• M8 X 1.25 x 16mm

PALFINGER STRAIGHT HYDRAULIC UNION 10L
• M16 x 1.5 Thread, Pipe-Ø: 10mm

PALFINGER STEEL ROLLER SPACER
• 26mm ID x 39.5mm OD x 4.5mm W

PALFINGER HYDRAULIC POWER PACK 12V
• Power-Up/Gravity-Down
• Steel Reservoir

PALFINGER PLATFORM LIFT CYLINDER
• 22" OAL Closed w/28mm Mnt Bushings

PALFINGER HYDRAULIC TILT CYLINDER
• 28" OAL Closed w/28mm Mnt Bushings
