Liftgate

BUYERS DUMP BED VIBRATOR INSTALLATION KIT - BODY-UP INDICATOR KIT
• 12 VDC 2H, 10.0 A A, 304 Stainless Steel Housing, Indicator Light
• Works In Extreme Temperatures Ranging From

WALTCO 2 POSITION 3 WAY VALVE

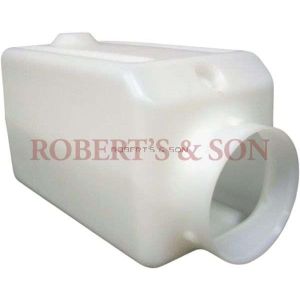

BUCHER POLY RESERVOIR
• Overall Length with Collar 15.00"
• Tank Length 13.00"
• Tank Width 6.75"
• Tank Height 6.75"
• Collar Length 2.00"
• 1.67 Gallons Useable

MAXON HORIZONTAL MOUNT POLY RESERVOIR 1 GALLON
• Cap not Included

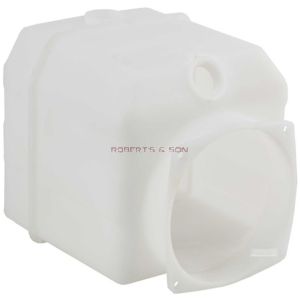

MAXON POLY RESERVOIR
• Overall Tank Length with Collar11.00"
• Tank Length 8.00"
• Tank Width 6.50"
• Tank Height 6.00"
• Collar Length 3.00"
• 1.25 Gallons Useable

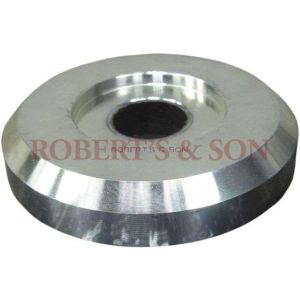

WALTCO LIFT ARM BEARING
• 1.25" ID X 1.5" OD X 1.0" L

WALTCO CONTROL HANDLE 96"

WALTCO ADJUSTABLE CABLE ASSEMBLY
• For 102" Wide Main Frame

WALTCO RUNNER HINGE PIN
• 8-3/4" Long X 1-1/25" Diameter

WALTCO RH HINGE ASSEMBLY

WALTCO HYDRAULIC POWER PACK 12V 2700PSI
• With Overload Protection

WALTCO FLOW CONTROL VALUE

WALTCO TOGGLE SWITCH KIT

WALTCO HYDRAULIC PUMP SEAL
• 25mm O.D. X 11mm I.D.

WALTCO 47.5" HIGH PRESSURE HOSE
• 3/8" JIC Female Swivel (2)

THIEMAN CONTROL SWITCH & HARNESS
• 6-Wire with In-Line Fuse

MONARCH HYDRAULICS DC COIL 12V
• Dual Wire Terminal 5/8" Bore
• M3551-HF Pumps

BUCHER HYDRAULIC POWER PACK 12V 2700PSI
• Power-Up/Power-Down

MAXON LIFT GATE MOTOR 12V CCW
• Insulated Ground
• Extended Slot Shaft
• 3 & 9 Thru-Bolt Position

THIEMAN HYDRAULIC POWER PACK
• Power Up Gravity Down
• Poly Reservoir
• Relief Pressure 3000psi

THIEMAN 4-WAY POWER-UP VALVE & COIL

LEYMAN HD SEALED TOGGLE SWITCH
• 3-Terminal, SPDT, MOM/OFF/MOM
• Silver Cadmium Oxide Contacts

MAXON CONTINUOUS DUTY SOLENOID KIT
• 12 Volt, 4 Terminal
• 200A Continuous
• 200A Surge
• 180° Curved Bracket
• With 10" 2ga Cable

MAXON INTERMITTENT SOLENOID
• 12 Volt, 3 Terminal
• 100A Continuous
• 200A Surge
• 180° Curved Bracket

WALTCO INTERMITTENT SOLENOID
• 12v, 3-Terminal
• 100a Intermittent
• 180° Curved Bracket

LEYMAN SEALED TOGGLE SWITCH
• Momentary Up-Down
• 7-Wire w/Hardware

PALFINGER MOTOR 12V 1.6KW CCW SLOTTED
• With Overload Protection
• 3 & 9 Thru-Bolt Position

WALTCO RELAY w/DUST SKIRT & BRACKET
• 12V 40A SPDT 5 TERMINAL

LEYMAN RELAY 12V 40A
• 5 Terminal, SPDT
