Liftgate

LEYMAN HYDRAULIC PUMP

MAXON RUNNER ASSEMBLY PIN
• 1.0” DIA. X 3-3/8” LG

MAXON STRAIGHT ELBOW WITH FACE SEAL
• #8, O-RING, #6 M-M

MAXON TROMBETTA INTERMITTENT SOLENOID
• 12V, 4-Terminal
• 150A Continous
• 800A Surge
• 180° Curved Bracket

MAXON CONTINUOUS DUTY SOLENOID KIT
• 12 Volt, 4 Terminal
• 200A Continuous
• 200A Surge
• 180° Curved Bracket
• With 10" 2ga Cable

MAXON INTERMITTENT SOLENOID
• 12 Volt, 3 Terminal
• 100A Continuous
• 200A Surge
• 180° Curved Bracket

LEYMAN DUAL SEALED TOGGLE SWITCH
• 10-Wire, 3 Position Momentary
• W/Hardware & Housing Gasket

MAXON CYLINDER VALVE CARTRIDGE

MAXON MOTOR 12V (HEAVY DUTY) CCW SLOTTED DRIVE 1.8KW
• Overload Protection
• 3 - 9 Thru Bolt Position

MAXON CONTINUOUS DUTY SOLENOID
• 12 Volt, 4 Terminal
• 200A Continuous
• 180° Flat Bracket

LEYMAN CONTINUOUS DUTY SOLENOID
• 12 Volt, 4 Terminal
• 200A Continuous
• 180° Flat Bracket

MAXON RELAY 12V 40A
• 5 Terminal, SPDT

SOLENOID VALVE COIL INDICATOR
• 3 PIN DIN W/LED 12/24V

DALTON HYDRAULIC POWER PACK 12V 2500PSI
• Power-Up/Power-Down
• 2 Gallon Poly Reservoir
• Bucher Version

WALTCO DRIVER SIDE DOCK BUMPER
• Stirrup Included

BUCHER HYDRAULIC POWER PACK 12V 3200PSI
• Power-Up/Power-Down
• Up 3200psi, Down 1000psi
• Both Ports Located at Side
• Poly Reservoir 6.75"x6.75"x15"

MAXON HYDRAULIC POWER PACK 12V
• Power-Up/Power-Down

LEYMAN 2-POSITION 2-WAY VALVE
• With Dual Wire Coil

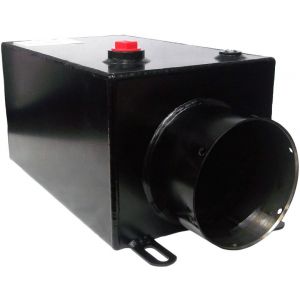

BUCHER STEEL RESERVOIR
• Overall Length with Collar 18.00"
• Tank Length 15.00"
• Tank Width 10.00"
• Tank Height 6.25"
• Collar Length 3.00"
• 3.50 Gallons Useable

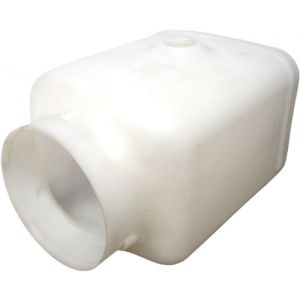

BUCHER POLY RESERVOIR
• Overall Length with Collar 10.00"
• Tank Length 8.00"
• Tank Width 6.50"
• Tank Height 5.50"
• Collar Length 2.00"
• 2.50 Quarts Useable

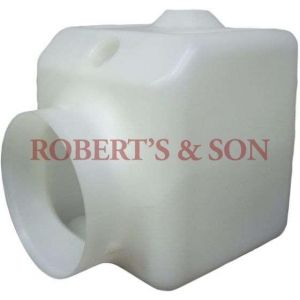

BUCHER POLY RESERVOIR
• Overall Length with Collar 9.00"
• Tank Length 7.00"
• Tank Width 6.75"
• Tank Height 6.75"
• Collar Length 2.00"
• 2.60 Quarts Useable

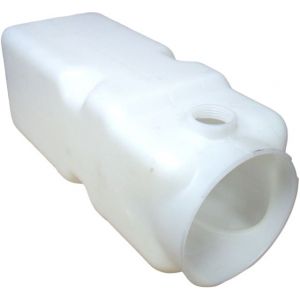

BUCHER POLY RESERVOIR
• Overall Length with Collar 7.50"
• Tank Length 5.50"
• Tank Width 6.75"
• Tank Height 6.75"
• Collar Length 2.00"
• 2.60 Quarts Useable

THIEMAN POLY RESERVOIR
• Tank Length 13.00"
• Tank Diameter 4.50"
• Single Hole
• 1.75 Quarts Useable

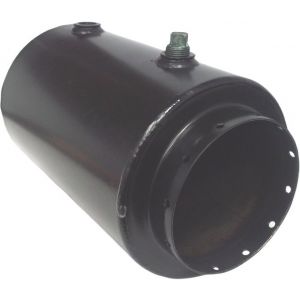

BUCHER STEEL RESERVOIR
• Overall Tank Length with Collar 10.00"
• Tank Length 9.00"
• Tank Diameter 6.00"
• Dual Hole
• Horizontal Mount
• 1 Gallon Useable

PALFINGER CONTROL SWITCH & CABLE ASSY.
• 2 Button, 3 Wire Coiled Harness

PALFINGER FLUSH MOUNT CONTROL SWITCH
• 3 Button, 5 Wire Harness
