M85417R
M85417R
Product Status: New
Product Price:
$31.85
In stock
SKU
rs-m85417r

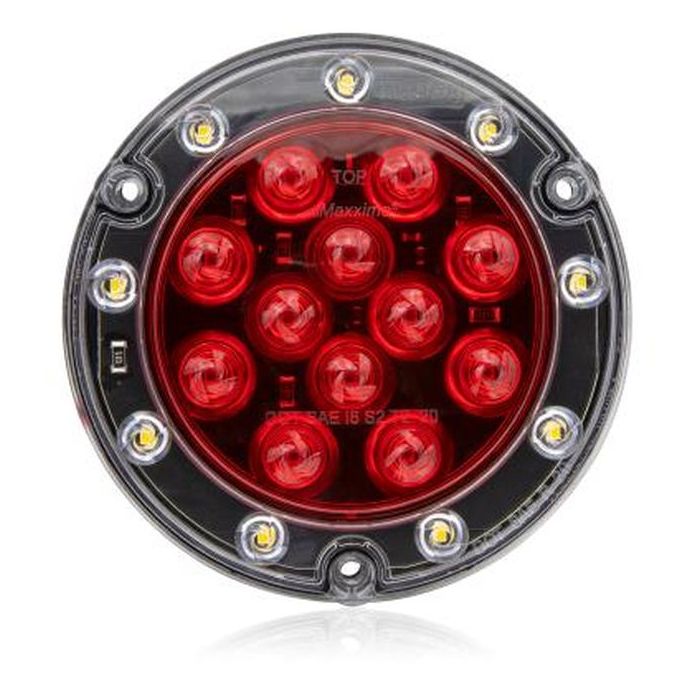

MAXXIMA 5" LED LIGHTNING-S STOP/TAIL/TURN BACK-UP LIGHT
• Polycarbonate Lens & Housing
• Solid State Circuit Board
• 5.5" Diameter 0.6" Depth
• LEDs:12 RED/9 WHITE
• 12.8 VDC, 260ma Draw
• Two Hole Flange Mounting
• Neoprene Gasket Included – Do Not Remove
No data available
| LEDs: 21 Total | 12 Red/9 White |
|---|---|
| Diameter | 5.5" |
| Depth | 0.5" |
| DOT/SAE | J1398, J585e, J1935, J593c |
| Legal Heading | R, I6S2T2 |
| Voltage | 12.8VDC |
| Amp Draw | 250ma STT/260ma Back Up |
| Connector | (2) Female PL-3 Pigtail |
| Mounting | Three Hole Flange |
| Note | Can replace discontinued M85416R, 24-LED Version |
| Manufacturer | Maxxima |
|---|---|
| Type | LED |
| Mount Type | Surface |
| Color | Red |
| Style/Shape | Round |
| Size | 4" |
