ECV7561STT-FA
ECV7561STT-FA
Product Status: New
Product Price:
$42.41
In stock
SKU
rs-ecv7561stt-fa

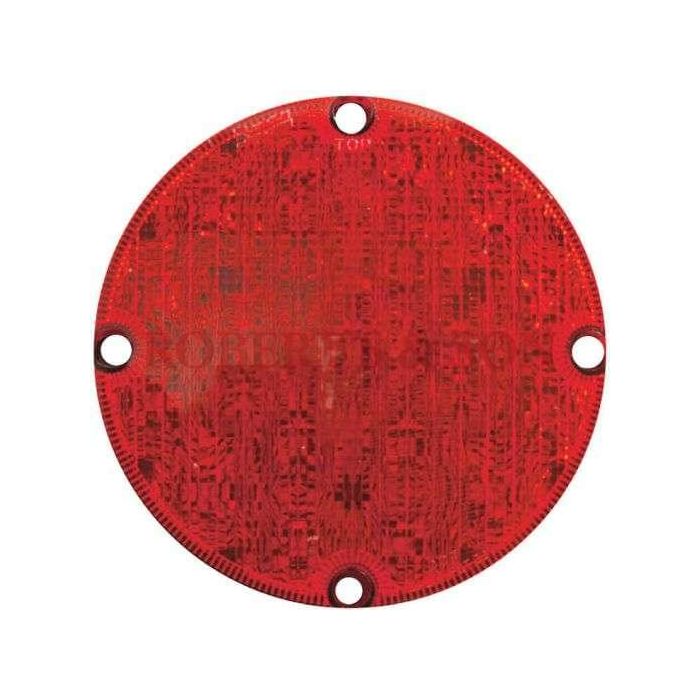

FA Series 7" Round Stop/Tail/Turn-Red
• Advanced optical technology exceeds all FMVSS and SAE requirements
• Specially engineered lens to boost light output and brightness
• Sonic welded, waterproof construction
• Reinforced stainless steel screw bosses – tested to 50 inch lbs. of torque
• Lens with UV inhibitor prevents sun fade
• Weatherproof seal with adhered neoprene gasket
• Includes 7”³ wire length
• Advanced optical technology exceeds all FMVSS and SAE requirements
• Specially engineered lens to boost light output and brightness
• Sonic welded, waterproof construction
• Reinforced stainless steel screw bosses – tested to 50 inch lbs. of torque
• Lens with UV inhibitor prevents sun fade
• Weatherproof seal with adhered neoprene gasket
• Includes 7”³ wire length
HD TRUCK/BUS/POLICE/FIRE/EMS
| Voltage | 9-16 Vdc |
|---|---|
| Current Draw:12.8 Vdc; Stop/Turn: .2 Amp, Tail | .1 Amp |
| LED Count | 19 |
| Dimensions | 7” (17.8 cm) diameter x 1.875” (4.8 cm) depth |
| Mount | Surface Mount on 6.25” (15.9 cm) centers |
| Certification | SAE J575, J578, J585, J586, J588, J1395, J1398 FMVSS 108 certified |
| Voltage | 12 |
|---|---|
| Manufacturer | Sound Off Signal |
| Type | LED |
| Mount Type | Surface |
| Color | Red |
| Style/Shape | Round |
| Size | 7" |
