428000-5430

Skip to the end of the images gallery

Skip to the beginning of the images gallery

428000-5430

Product Status: New OEM

Product Price:

$414.63

Calculate Shipping Rates:

In stock

SKU

rs-428000-5430

Description

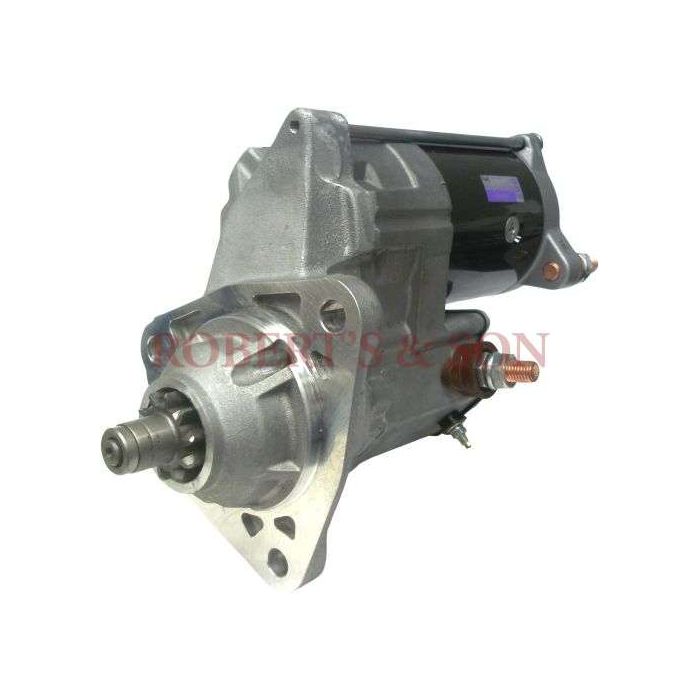

NEW OEM DENSO R5 OSGR 12V 10T 5.0KW CW
• High torque for maximum starting power, improved cold start ability, highest in the industry
• Class leaders in size and weight
• Environmentally designed to start in cold and hot weather conditions
• Mechanical soft engagement for improved durability of pinion and ring gear
• Torque limiter feature to prevent ring gear / drive train breakage

Applications

VOLVO VE D12 ENGINES
Volvo Heavy Duty
ACL42 / ACL64 Series Volvo VED 12 1994-2002
VHD Series Volvo VED 12 2001-2007
VNL Series Volvo VED 12 1997-2007
VNM Series Volvo VED 12 1997-2007
Volvo Medium Duty
WA / WC / WG / WH / WI / WX Series Volvo VED 12 1994-2001

Specifications

Product Specifications
OEM	Denso
Type	OSGR
Voltage	12
Power	5.0KW
Rotation	CW
Teeth	10
Pinion OD	40mm
GND Stud	Yes
OCP	No
IMS	No
Mnt Hole 1	13.5mm
Mnt Hole 2	13.5mm
Mnt Hole 3	13.5mm
Number of Mount Holes	3

Manufacturer Part Numbers

428000-5430 4280005430 190-50105 19050105 CM19506N 126-19506 SND0563 3190-9056 90-19506 0128036352 19506N 410-52142 19506 428000-5430 S19506 2-2930-ND 91-29-5689 190-9056 12619506 31909056 9019506 41052142 4280005430 22930ND 91295689 1909056 ND5431 TG428000-5430 TG4280005430 190-50105

More Information

More Information
Vehicle Application	Volvo Truck
Engine Manufacturer	Volvo D12
OE Part Manufacturer	Denso
Series	OSGR
Voltage	12
Teeth	10
Starter Mount Type	Flange (Direct)
Number of Mount Holes	Three
Rotation	Clockwise
