290-20148

Skip to the end of the images gallery

Skip to the beginning of the images gallery

290-20148

Product Status: New OEM

Product inventory is unavailable.

Calculate Shipping Rates:

Out of stock

SKU

rs-290-20148

Description

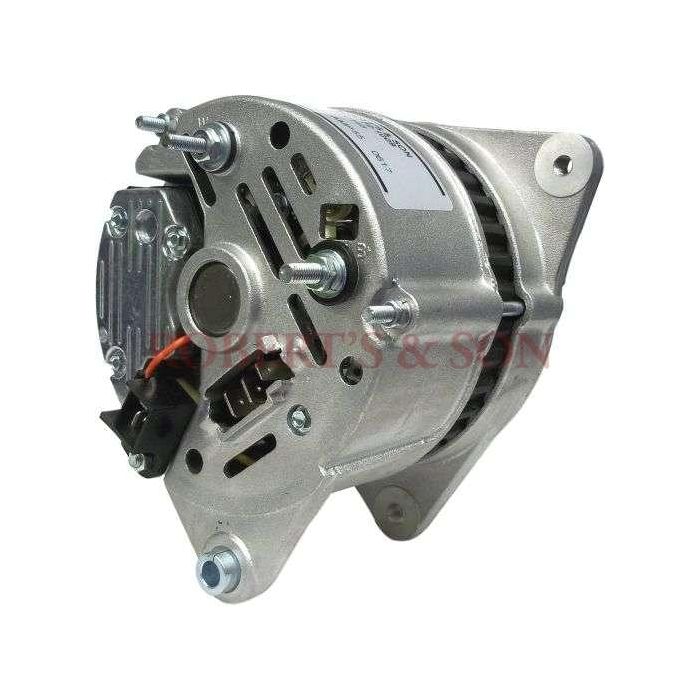

LUCAS/MARELLI 12V 55A IREF 1V
• With Battery Temperature Sensor

Applications

Ford 231, 233, 333, 355, 420, 455, 515, 531, 550, 550A, 550B, 555, 555A
555AXL, 2310, 2610, 2810, 2910, 3610, 3900, 3910, 4100, 4110, 4600, 4610
5600, 5610, 5700, 5900, 6410, 6600, 6610, 6710, 6810, 7410, 7600, 7610
7700, 7710, P412
New Holland L781, L783, L785, 230A, 231, 233, 234, 333, 334, 335, 420
455, 515, 530A, 531, 532, 535, 2600, 2610, 2810, 2910, 3600, 3610, 3900
3910, 4100, 4110, 4600, 4610, 6610

Specifications

Product Specifications
OEM	Lucas
Type	Brush
Mount	Hinge
Voltage	12
Amperage	55
Regulator	Internal
Fan	External
Shaft Size	17mm
Pulley Type	Solid
Pulley Grooves	1
Pulley Included	Yes
Battery Stud Size	M6-1.0
D+ Terminal	Spade
B+ Terminal(2)	Spade
W Terminal	M5-0.8
Notes	Without Battery Temp. Sense Use 290-20110

Manufacturer Part Numbers

CA12089N 312-12089 ALU0007 ALU0011 3280-307A 111363 10-12089 A-460 A-12089 E3NN-10B376-AB E3NN-10B376-AC E3NN-10B376-AD IA0505 12089 LRA00530 24256 24256A 24256AC 24256B 24256C 24256D 54022292 54022310 54022310F A2522 063324256010 63324256 MAN134 47-3401 X612045 X612088N 81863039 83961474 280-322 595.018.045 DRA3289 12089N 36-12089 SA483 IND-1144273 99613 90-17-8064 ALT10022 ALT16037 280-307A 280307A 24246 24273 24318 24384 54022336 54022336D 54022431 54022481 54022776 400-30001R 40030001 400-30001 24246B 54022310E

More Information

More Information
Vehicle Application	Ford Industrial, New Holland
Engine Manufacturer	CNH, Ford, New Holland
Voltage	12V
Amperage	55
OE Part Manufacturer	Magneti Marelli
Alternator Mount Type	Hinge-Offset
Number of Mount Holes	Three
Regulator Location	Internal
Fan Location	External
