470-10166NOE

Product Status: New OEM

Product Price:

$850.00

Calculate Shipping Rates:

In stock

SKU

rs-470-10166NOE

Description

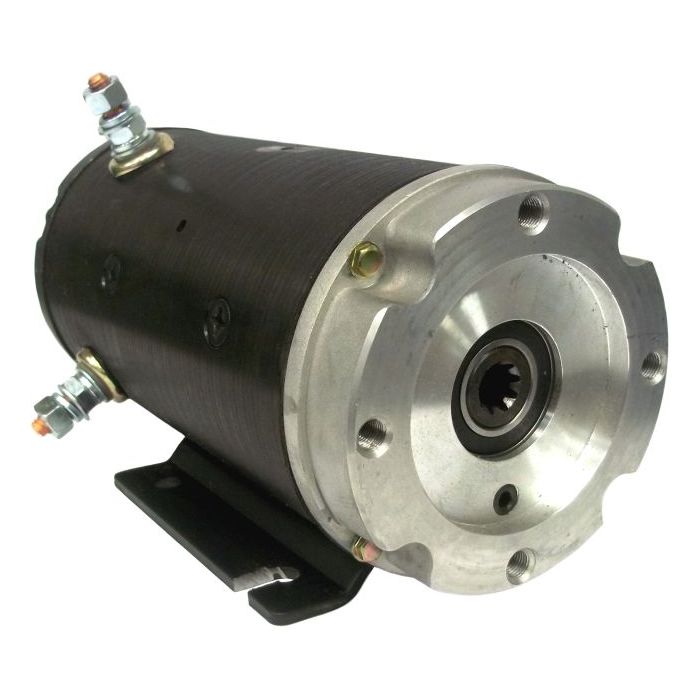

PRESTOLITE STEERING MOTOR 24V 7.09HP CW
• Sealed Unit
• 9 Spline Internal Shaft

Applications

Caterpillar Equipment
768C, 769C, 771C, 771D, 772B, 773B, 773D, 773E, 775B, 775D
775E, 776C, 776D, 777C, 777D, 777E, 797, 797B, 725, 730, D250E-II
D300E-11, 5110B, 914G, 914G2, 924G, 924GZ, 924H, 924HZ, 926M
928G, 928H, 928HZ, 930G, 930H, 930K, 930M, 938G, 938K, 938M
IT14G, IT14G2, IT28G, IT38G, R1300, R1300G, R1600, R1600G
R1700G, R1700K, R2900, R2900G

Specifications

Product Specifications
OEM	Prestolite/Ametek
Voltage	24
Power	7.0HP
Rotation	CW
OD	127mm
Length	262mm
Shaft OD	25mm
Shaft Type	9 Spline
Terminal 1 Size	3/8-16
Terminal 2 Size	3/8-16
Mount Holes (2)	3/8-24

Manufacturer Part Numbers

W4037 W-4037 MFY4203 MFY4203S MFY203D 2200943 MFY4203RM 46-4037RM 46-1037 347-3554 3473554 401-00129A 40100129A 396-2575 3962575 430-20052 117-3915 1173915 46-4037 94-06-1835 MFY-4203 MFY-4203D MFY-4203RM MFY-4203S MFY4203 MFY4203D MFY4203RM MFY4203S 1173915 117-3915

More Information

More Information
Motor Type	Hydraulic Pump, Power Steering
Voltage	24
Shaft Type	Spline
Number Of Terminals	2
OE Part Manufacturer	Ametek/Prestolite
