Liftgate

PALFINGER AUTO-RESET CIRCUIT BREAKER 150AMP
• 150Amp Ignition Protected
• 3/8" Studs w/Caps, Waterproof

MAXON PUMP/RESERVOIR O-RING
• 95mm Diameter x 3.5mm Thick

MAXON RESERVOIR BREATHER CAP 3/4" NPT

PALFINGER PUMP/RESERVOIR O-RING
• 95mm Diameter x 3.5mm Thick

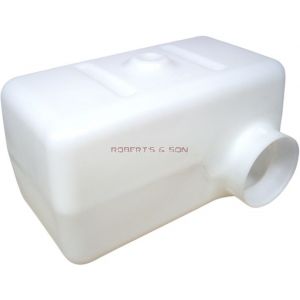

PALFINGER SINGLE HOLE POLY RESERVOIR
• Overall Tank Length w/Collar 15"
• Overall Tank Width 6"
• Overall Tank Heght 5"
• Horizontal Mount
• Breather Cap Not Included

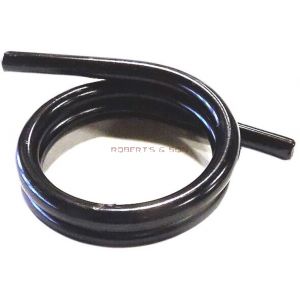

MAXON RUNNER ASSY TORSION SPRING
• 2-1/8" Diameter x 1/2" Coil

MAXON FLUSH MOUNT RESERVOIR PLUG
• 3/4"-14 Steel Allen Head

MAXON RESERVOIR BREATHER-FILL CAP
• 2 Req'd When Used With 288205 Reservoir

BUCHER POLY RESERVOIR
• Tank Length 14.5"
• Tank Width 8.00"
• Tank Height 8.00"
• Collar Length 1.5"

MAXON PUMP SIDE INTERCONNECT HARNESS 6'

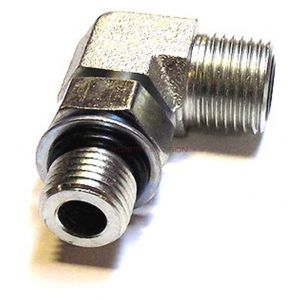

MAXON PUMP/HOSE ELBOW
• SAE #6 Male-Male O-Ring

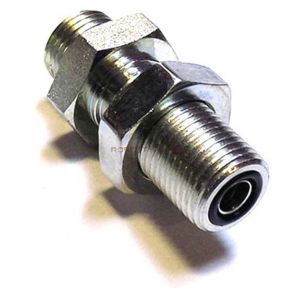

MAXON BULKHEAD UNION
• SAE #6 Face Seal O-Ring

MAXON HYDRAULIC POWER PACK 12V

TOMMY GATE INTERMITTENT SOLENOID
• 12V, 4-Terminal
• 150A Continous
• 800A Surge
• 180° Curved Bracket

PALFINGER LARGE PIN PLATE
• 6mm Thick w/12mm Oval Hole

PALFINGER UPPER/LOWER BODY PIN
• 25mm X 75mm w/6mm Slots

PALFINGER UPPER/LOWER BODY PIN
• 40mm X 94mm w/7mm Slots

PALFINGER PLATFORM PIN
• 28mm X 386mm

PALFINGER UPPER/LOWER BODY PIN
• 28mm X 153mm w/6mm Slots

PALFINGER PLATFORM LIFT ARM BUSHING
• 25mm ID x 29mm OD x 31mm Long

PALFINGER EXTERNAL SNAP RING
• 28mm x 1.5mm

PALFINGER LOWER LEFT SIDE HYDRAULIC PIPE
• Approximately 30" OAL

PALFINGER MIDDLE LEFT SIDE HYDRAULIC PIPE
• Approximately 28" OAL

PALFINGER TOP RIGHT SIDE HYDRAULIC TUBE
• Approximately 38" OAL

PALFINGER LOWER RIGHT SIDE HYDRAULIC PIPE
• Approximately 43" OAL

PALFINGER 34" HIGH PRESSURE HOSE
• 1/4" JIC Female Swivel (2)

PALFINGER CONTROL SWITCH & CABLE ASSY.
• 3 Button, 5-Wire Coiled Harness w/Plug

PALFINGER POWER DOWN HARNESS - 11"
• 4-Terminal w/Diode

PALFINGER CHAIN ARM U-LINK
• 2-3/8" x 3/8-16" THD
