Liftgate

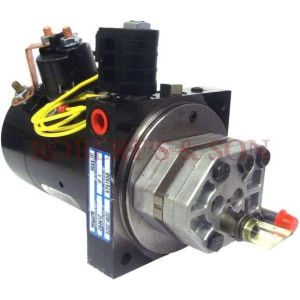

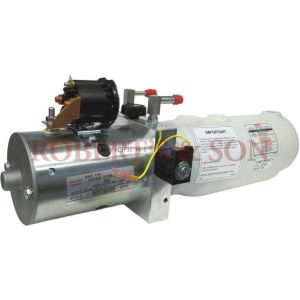

WALTCO HYDRAULIC POWER PACK 12V 2700PSI
• Power-Up/Gravity-Down
• 3 Quart Poly Reservoir

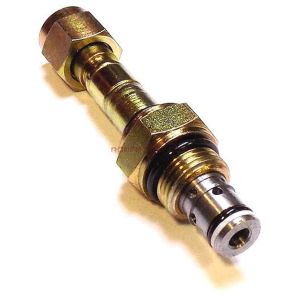

WALTCO 2 WAY VALVE WITHOUT COIL

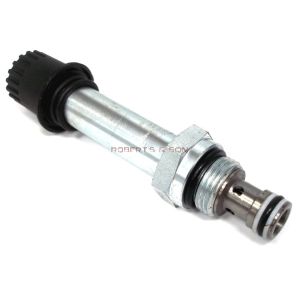

WALTCO LIFT VALVE WITH COIL 12V

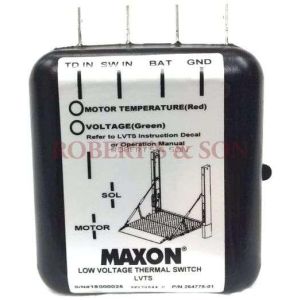

MAXON LOW VOLTAGE THERMAL SWITCH

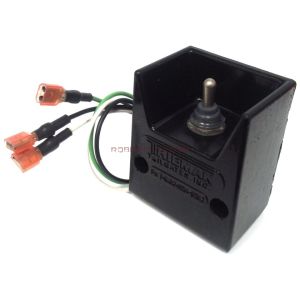

THIEMAN SEALED CONTROL SWITCH
• 3-Wire with 9" Side Leads

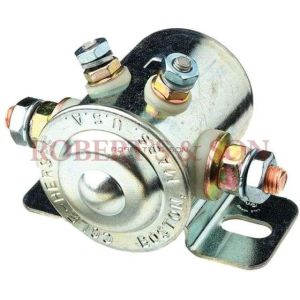

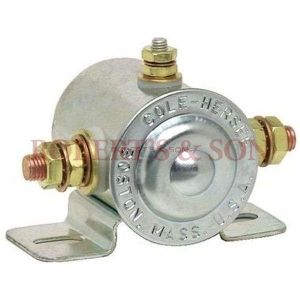

COLE HERSEE CONTINUOUS DUTY SOLENOID
• 12V 4 Terminal 85Amp

COLE HERSEE CONTINUOUS DUTY SOLENOID
• 12V 3 Terminal 80AMP

HELLA HIGH-CAPACITY MINI RELAY 12V 50A
• 4 Terminal, SPST, Cover
• Resistor Coil Suppression

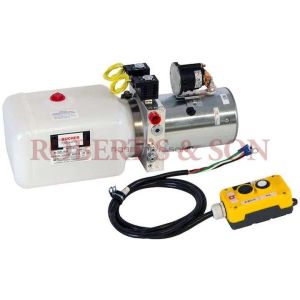

BUCHER HYDRAULIC POWER PACK 12V 2500PSI
• Power-Up/Power-Down
• 2 Gallon Poly Reservoir

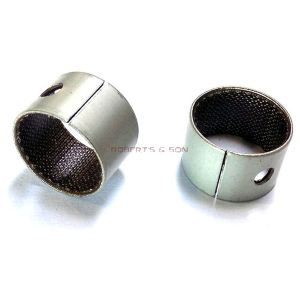

WALTCO FIBREGLIDE BUSHING
• 1.0" ID X 3/4" Long

WALTCO BATTERY BOX COVER
• Dim: 39" x 14" x 24"

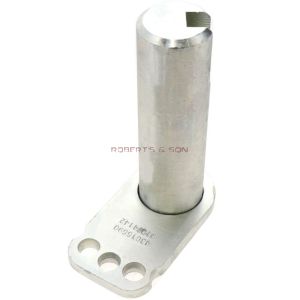

WALTCO 1/2" RH HINGE PIN ASSEMBLY

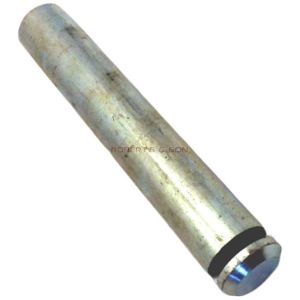

WALTCO SPROCKET PIN

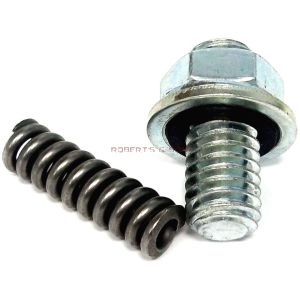

WALTCO PUMP RELIEF VALVE

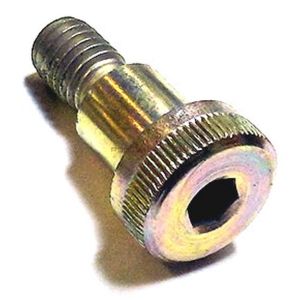

WALTCO SOCKET HEAD SHOULDER SCREW

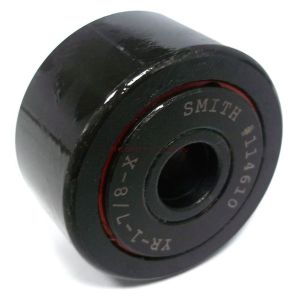

WALTCO CAM FOLLOWER BEARING
• 13mm ID x 48mm OD x 27mm Wide

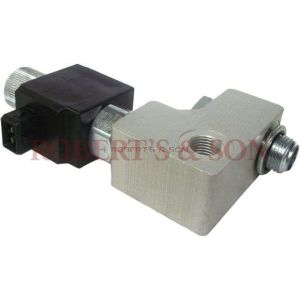

WALTCO HYDRAULIC VALVE

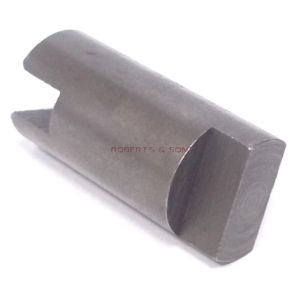

WALTCO MOTOR/PUMP COUPLER
• 5mm To 6mm Tang, 32mm Long

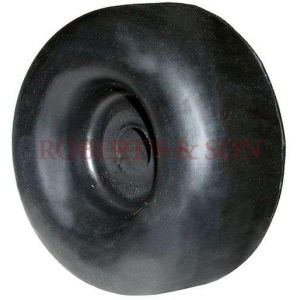

BUYERS 2-1/2" ROUND RUBBER BUMPER
• Protect from damage caused by door handles, latches and cam locks
• Acts as a cushion between ground and loading ramp or lift gate

WALTCO PUMP/RESERVOIR O-RING
• 95mm Diameter x 3.5mm Thick

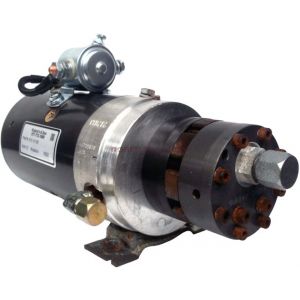

MAXON HYDRAULIC POWER PACK 12V
• Power-Up/Gravity-Down

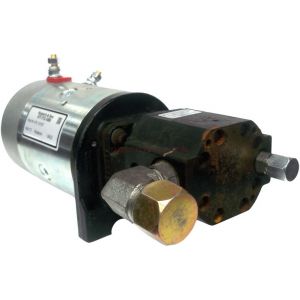

MAXON SLIM LINE 12V POWER PACK
• Power-Up/Gravity Down
• Reservoir Not Included

HYDRA FORCE SOLENOID VALVE COIL
• 24V - 18" Weather Pack Plug
• 5/8" Valve Hole Diameter

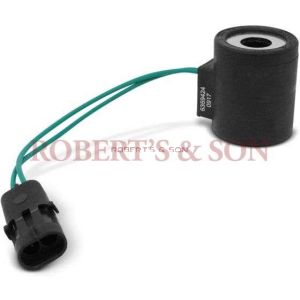

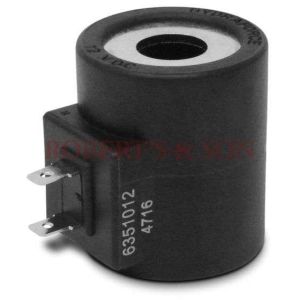

HYDRA FORCE SOLENOID VALVE COIL
• 12V - Two Terminal
• 5/8" Valve Hole Diameter

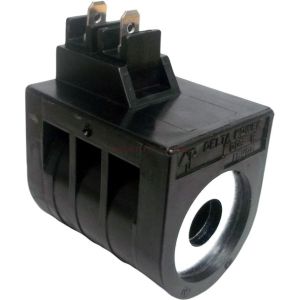

MAXON 4-WAY SOLENOID COIL 12V 2 WIRE

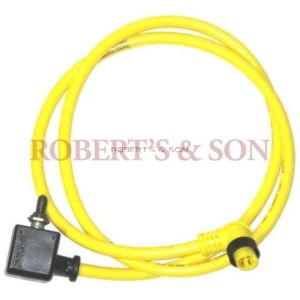

MAXON SWITCH & CABLE ASSEMBLY
• 4-Wire Momentary Toggle

AMETEK INTERMITTENT SOLENOID
• 12 Volt, 3 Terminal
• 100A Continuous
• 200A Surge
• 180° Curved Bracket
