Liftgate

MAXON UP-LINE TUBE ASSEMBLY

PALFINGER CONTROL SWITCH & CABLE ASSY.
• 3 Button, 5-Wire Harness w/Plug

MAXON HYDRAULIC POWER PACK 12V

PALFINGER DRIVER SIDE SPRING-BLACK
• Standard Duty 7.5" X 9/16" Diam.

PALFINGER DRIVER SIDE SPRING-GRAY
• Heavy Duty 7.5" X 5/8" Diam.

PALFINGER BATTERY MASTER DISCONNECT SWITCH

TOMMY GATE POLY RESERVOIR
• Tank Length 13.00"
• Tank Diameter 4.50"
• Single Hole
• 3.00 Quarts Useable

PALFINGER PLATE PIN
• 36mm X 104mm

PALFINGER GROUND ROLLER & PIN KIT
• 108mm OD Roller & Hardware Included

PALFINGER UPPER/LOWER BODY PIN
• 28mm X 85mm w/6mm Slots

PALFINGER LOWER CLOSE CYLINDER PIN
• 25mm X 65mm w/Threaded Recess

PALFINGER GREASE FITTING
• 15.3mm x M10-1.0

PALFINGER PLATFORM LIFT ARM BUSHING
• 28mm ID x 32mm OD x 36mm Long

PALFINGER 90" HIGH PRESSURE HOSE
• 3/8 JIC Female Swivel
• 3/8" JIC Male Flare

PALFINGER EXTERNAL SNAP RING
• 28mm x 1.20mm

PALFINGER PLATFORM PIN SHIM
• 36mm Diameter

PALFINGER NYLON ROLLER
• 26.5mm ID x 78.5mm Diam x 53mm Wide

PALFINGER TORSION SPRING INSERT
• 40mm x 192mm

PALFINGER PLATFORM PIN KIT
• 255mm x 36mm - 32mm Diam.

PALFINGER HYDRAULIC POWER PACK 12V
• Power-Up/Gravity-Down
• Steel Reservoir

PALFINGER SINGLE CYLINDER HOSE KIT

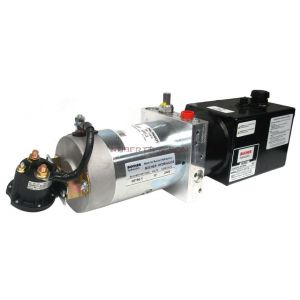

BUCHER HYDRAULIC POWER PACK 12V 2500PSI
• Power-Up/Power-Down
• 1 Gallon Poly Reservoir

WALTCO 90.5" HIGH PRESSURE HOSE
• 1/2" JIC Flare X 90° 1/2 JIC Female Swivel

WALTCO 18" HIGH PRESSURE HOSE
•  1/4" JIC Female Swivel (2)

POLY RESERVOIR INSTALLATION KIT
• 3/4" Vent Cap & Filter Included

MAXON RH COLUMN HARNESS

THIEMAN HYDRAULIC PUMP SEAL
• 25mm O.D. X 11mm I.D.

MAXON INTERMITTENT SOLENOID
• 12 Volt, 4 Terminal
• 100A Continuous
• 200A Surge
• 180° Curved Bracket

MAXON INTERMITTENT SOLENOID
• 12 Volt, 3 Terminal
• 100A Continuous
• 200A Surge
• 180° Curved Bracket

LEYMAN SEALED TOGGLE SWITCH
• 4-Wire, Power-Up/Gravity-Down
