Switches & Relays

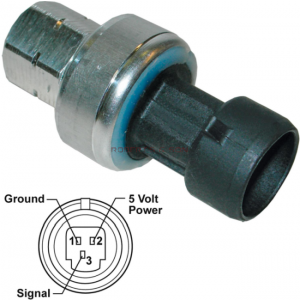

PRESSURE TRANSDUCER
• Pigtail, Female
• @ 100psi: 1.24v
• @ 200psi: 2.29v
• @ 300psi: 2.25v
• @ 400psi: 4.38v

CLUTCH CYCLING SWITCH R134A
• Pin Terminal

BINARY PRESSURE SWITCH
• HP Open: 417 Psi
• HP Close: 227 Psi
• LP Open: 323 Psi
• LP Close: 269 Psi
• Fitting Size: M10-1.25 Female

HIGH PRESSURE SWITCH
• Open:355 Psi
• Close: 205 Psi
• Fitting Size: M10-1.25 Female

HIGH PRESSURE SWITCH
• Open: 310 Psi
• Close: 210 Psi
• Fitting Size: 7/16-20 Female Flare

BINARY PRESSURE SWITCH
• HP Open: 400 Psi
• HP Close: 225 Psi
• LP Open: 27 Psi
• Fitting Size: M10-1.25 Female

HIGH PRESSURE SWITCH
• Open: 275 Psi
• Close: 225 Psi
• Fitting Size: M10-1.25 Female

TRINARY PRESSURE SWITCH
• HPCO: 412 Psi
• LPCO: 29 Psi
• Fan Pressure: 190 Psi
• Fitting Size: 3/8-24 Male

BINARY PRESSURE SWITCH
• HP Open: 265 Psi
• HP Close: 380 Psi
• LP Open: 28 Psi
• Fitting Size: 3/8-24 Male

BLOWER MOTOR HI-BLOWER RELAY
• 5 Terminals 12v

HIGH PRESSURE SWITCH
• Open: 485 Psi
• Close: 270 Psi
• Fitting: M10-1.25 Female

CLUTCH CYCLING PRESSURE SWITCH
• Pigtail, Pressure Type
